SectioDownload

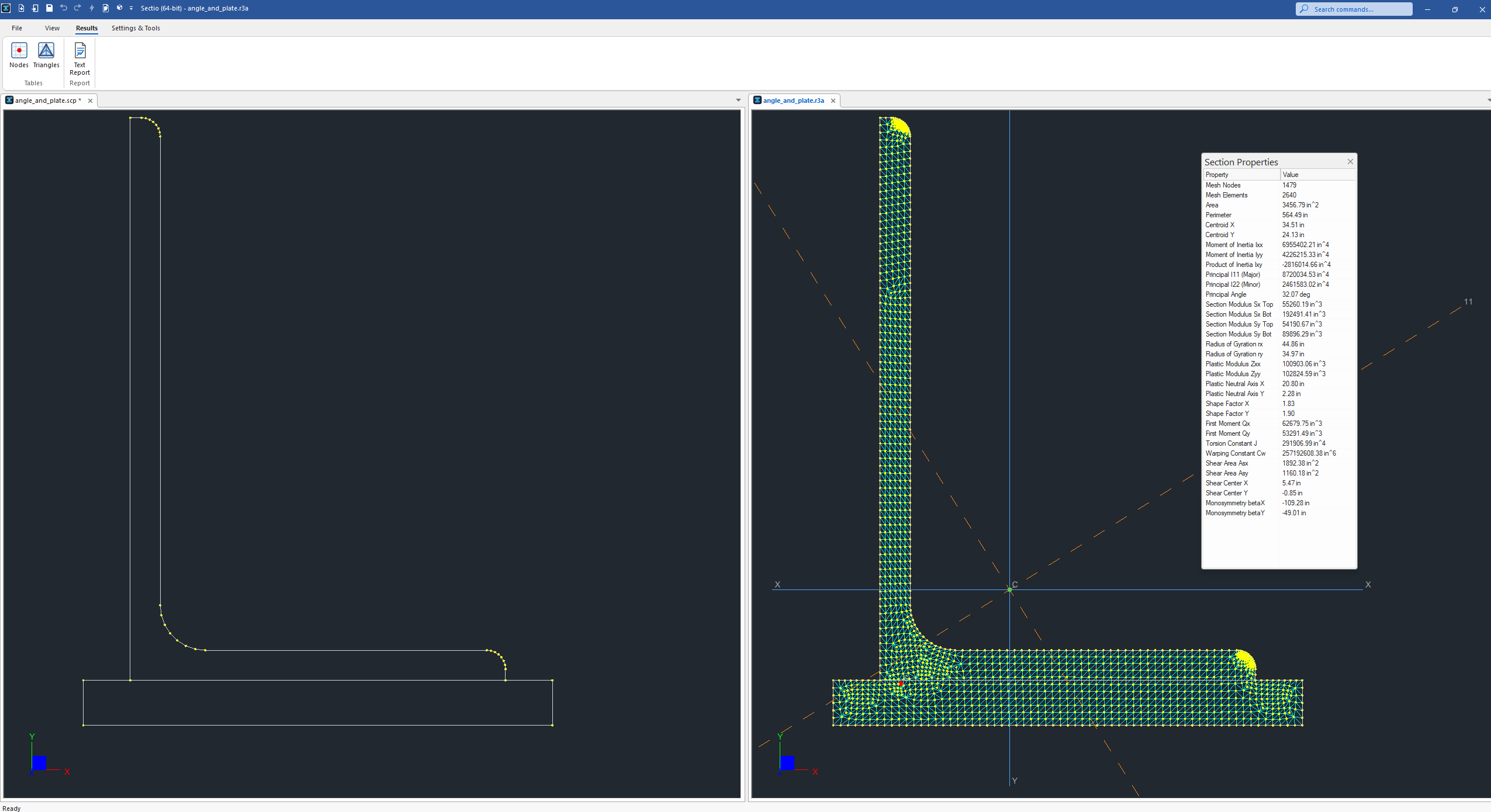

Sectio calculates the geometric and structural properties of a cross-section of virtually any shape. A section is defined by a single outer polygon and any number of inner polygons that represent holes, allowing complex and irregular geometries to be modeled. A polygon consists of nodes and lines that connect between nodes.

For properties that cannot be obtained from simple closed-form formulas, Sectio employs the finite element method to deliver accurate results. These include the torsional constant (J), the warping constant (Cw), and the shear areas (Asx and Asy), among others.

Click here for example videos.

Key Features

• Easily create cross-sectional geometry using intuitive click-and-draw tools.
• Combine multiple touching polygons to form a single exterior boundary.
• Automatically detect interior polygons as openings
• Generate high-quality finite element meshes quickly and efficiently.
• Perform fast finite element analysis using the PARDISO (Parallel Direct Solver) sparse solver.
• Modern ribbon-based interface with a Quick Access Toolbar, command search, side-panel Model Explorer, and customizable color themes.
• Multiple-document interface that allows several models to be opened simultaneously, with multiple views and independent display settings for each model.

System Requirements

Operating System: x64 Windows 10 or 11
